Device Lock - Samsung Galaxy Tab® 2 (7.0)

If using Microsoft Exchange / Corporate sync, pattern lock may be unavailable.

Setup screen lock
Lock the device
Unlock the device

Setup screen lock

1. From a home screen, select Apps .
   Located at the bottom when viewed in portrait or at the right in landscape.
2. From the Apps tab, select Settings.
3. Select Lock screen.
   If secured, enter / draw the current PIN, password or pattern.
4. Select one of the following.
   Swipe
   Face Unlock
   Pattern
   PIN
   Password
   None

Face Unlock

1. Select Set it up.
2. Select Continue.
   For best results, find an indoor location with good lighting.
3. Align the facial outline to capture face.
4. Select Continue.
5. Select one of the following backup locks.
   Pattern
   PIN

Pattern (Backup to Face Unlock)

1. Draw an unlock pattern then select Continue.
   Pattern must contain at least 4 dots.
2. Draw the pattern again then select Confirm.
3. Select OK

Back to Face Unlock Backup Lock Options
Back to Screen lock type
Top

PIN (Backup to Face Unlock)

1. Enter the preferred PIN then select Continue.
   PIN must contain at least 4 numbers.
2. Enter the PIN again to confirm then select OK.
3. Select OK

Back to Face Unlock Backup Lock Options
Back to Screen lock type
Top

Pattern

1. Draw an unlock pattern then select Continue.
   Pattern must contain at least 4 dots.
2. Draw the pattern again then select Confirm.
3. Enter the preferred backup PIN then select Continue.
   PIN must contain at least 4 numbers.
4. Enter the PIN again then select OK.

Back to Screen lock type
Top

PIN

1. Enter the preferred PIN then select Continue.
   PIN must contain at least 4 numbers.
2. Enter the PIN again to confirm then select OK.

Back to Screen lock type
Top

Password

1. Enter the preferred password then select Continue.
   Password must contain at least 4 characters.
2. Enter the password again to confirm then select OK.

Back to Screen lock type
Top

Lock the device

Security lock is engaged once the device has been idle for a specified length of time (e.g. 1 minute, 5 minutes, 20 minutes, etc.) then the display is turned off.

To adjust the Security lock timer, refer to Password Options for assistance.

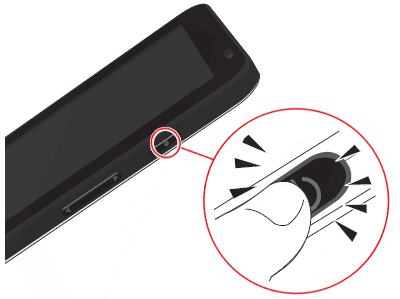

1. Press the Power button to turn the display off.
   If Screen timeout is enabled, the display will automatically turn off once the device has been idle for a specified length of time (e.g., 15 seconds, 1 minute, 2 minutes, etc.). To adjust the Screen timeout, refer to Display Settings for assistance.


Top

Unlocking the device

Unlock when Screen lock is set
Unlock when Screen lock is not set

Unlocking the device when Screen lock is set

1. If the display is dark press the Power key.

2. When presented, perform one of the following:
   • Look at the device.
   • Enter the Password then select Enter.
   • Enter the PIN then select OK.
   • Draw the pattern.

If the unlock password, pattern or PIN are forgotten and the Google Account credentials are not available, a hard reset will need to be performed.

Top

Back to Unlocking the device
Top

Unlocking the device when Screen lock is not set

1. If the display is dark press the Power key.

2. Select and swipe finger on screen.
