Memory Card Inserting / Removing - DROID BIONIC by Motorola

This device supports microSD (TransFlash) memory cards (sold separately). Memory cards can be purchased from any Verizon Wireless retail store or at the online store.

Insert the memory card
Remove the memory card

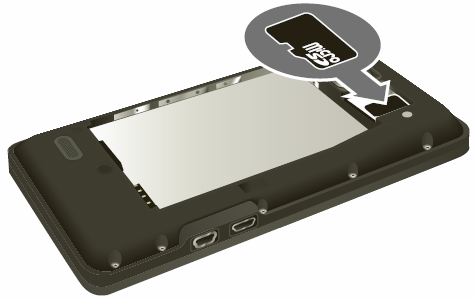

Insert the memory card

1. Ensure the device is powered off.
   Press and hold the Power button then select Power off.

2. Gently pull the cover open from the gap on the top edge of the phone.

3. With the gold contacts facing down, insert the memory card as shown.

4. Replace the battery cover.
   Align the bottom edge of cover then gently press into place.


Top

Remove the memory card

1. From a home screen, select Apps ( located at the bottom).
2. From the All Apps tab, select Settings.
3. Select Storage.
4. Select Unmount SD card.
5. Select OK.
6. Power the device off.
   Press and hold the Power button then select Power off.
7. Gently pull the cover open from the gap on the top edge of the phone.

8. Remove the memory card.

9. Replace the battery cover.
   Align the bottom edge of cover then gently press into place.


Top
