Battery Inserting / Removing - DROID CHARGE™ by SAMSUNG

Insert the battery
Remove the battery

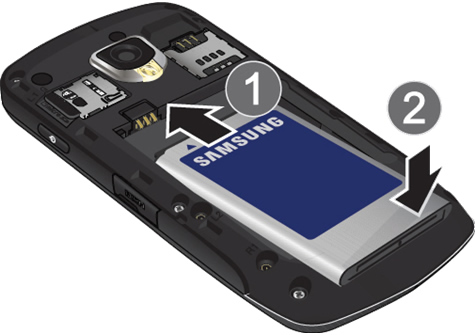

Insert the battery

1. Remove the battery cover.
   Utilizing the provided slot (figure 1), carefully lift then detach the cover.

2. Insert the battery as shown.
   Ensure that the connectors on the battery align with the connectors on the device.

3. Replace the battery cover.
   Starting from the top of the device, press in on the cover to lock it into place.

Top

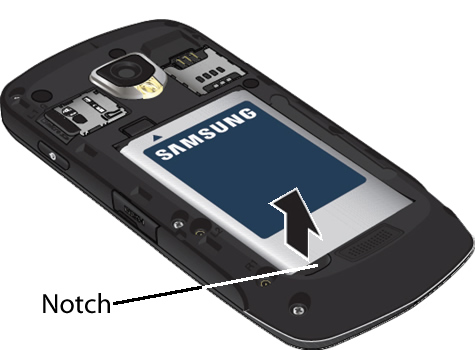

Remove the battery

1. Press and hold the Power button.

2. Select Power off.

3. Remove the battery cover.
   Utilizing the provided slot (figure 1), carefully lift then detach the cover.

4. Utilizing the notch, lift then remove the battery as shown.
