Wireless Network Security Settings - Jetpack 4G LTE Mobile HotSpot MiFi 4510L

1. Access the Administration Page.

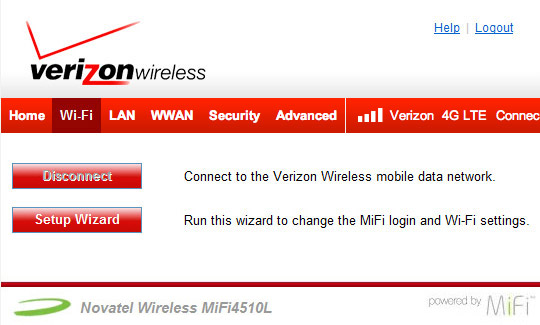

2. From the Home screen, select Wi-Fi.

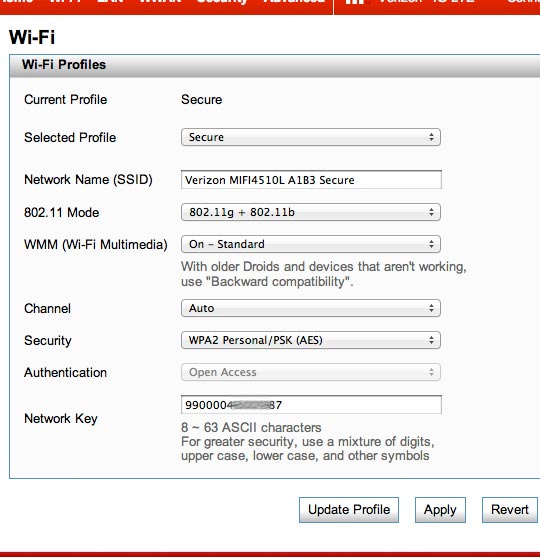

3. Ensure the appropriate options are selected then click Apply.
   • Selected Profile

     Open

     No Wireless security is possible.

     Secure

     Wireless security must be enabled.

     Temporary Hotspot

     Security is enabled, and the network name (SSID) and security key are auto-generated.



   • Network Name (SSID)
     Each profile must have a unique name.

     Enter the desired Network Name (SSID)

   • 802.11 Mode

     802.11g

     802.11b

     802.11n

     802.11g + 802.11b + 802.11n

   • WMM (Wi-Fi Multimedia)
     WMM is mandatory if using 802.11n.

     Off

     On - Standard

     Backward compatibility

   • Channel
     If available, the Auto setting is recommended.

     Select the appropriate channel.

     Auto & 1 through 11

   • Security

     WEP 64-bit

     WEP 128-bit

     WPA Personal / PSK (TKIP)

     WPA2 Personal / PSK (AES)

     WPA / WPA2 Personal Mixed Mode

   • Network Key
     The password to access the Wi-Fi network depends upon the Security option selected.
     • WEP 64-bit - 5 ASCII characters or 10 HEX characters.
     • WEP 128-bit - 13 ASCII characters or 26 HEX characters.
     • WPA Personal / PSK (TKIP) - ASCII string, 8 to 63 characters in length.
     • WPA2 Personal / PSK (AES) - ASCII string, 8 to 63 characters in length.
     If the network key is changed, the network settings on the computer must updated. For additional assistance, select the appropriate operating system:
     Macintosh OS X
     Windows 7
     Windows Vista
     Windows XP
