Windows Device Manager Conflicts - DROID X by Motorola

Start Device Manager.

  • Windows 8
    • Right-Click Start Screen > All Apps > Control Panel > System and Security > Device Manager.
  • Windows 7
    • Click Start > Control Panel > System and Security > Device Manager.
  • Windows Vista
    • Click Start > (Settings) Control Panel > (System and Maintenance) > Device Manager.
      Note If prompted, click Continue.
  • Windows 2000 / XP
    • Click Start > (Settings) Control Panel > (Performance and Maintenance) > System > Hardware > Device Manager.

For detailed instructions, refer to Opening Windows Device Manager.

The following devices are normally installed:
Note Depending upon the selected USB connection (e.g. PC Mode, Windows Media Sync, USB Mass Storage, Charge Only), some of the devices may not appear.

ADB Interface
Mot Composite ADB Interface
Disk drives
Motorola MB810 USB Device
Modems
Motorola USB Modem
Network adapters
Motorola USB Networking Driver
Portable Devices
DROIDX
E:\ (drive letter may vary)
Universal Serial Bus controllers
Motorola USB Composite Device
USB Composite Device
USB Mass Storage Device

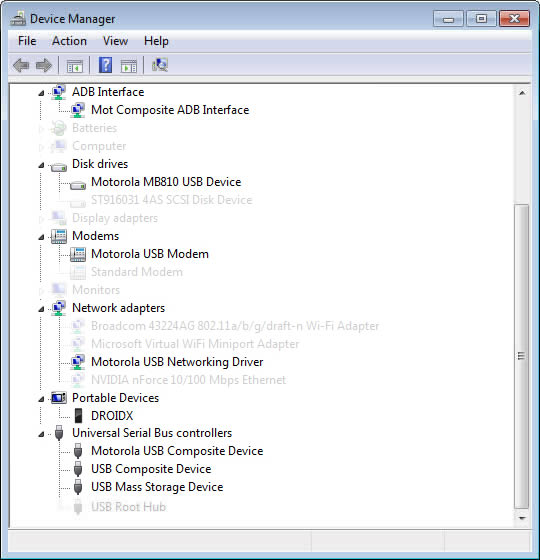

Device Manager devicesl
Note If a red X, yellow ! or yellow ? is displayed to the left of a listed device, a conflict is present and the drivers must be updated or reinstalled.
Note Driver conflicts may also be indicated by a device entry labeled Other Devices or Unknown.
Note The device name may vary from the example.

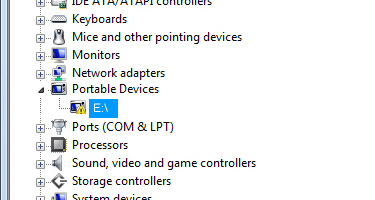

Device with conflict

If a conflict is present:

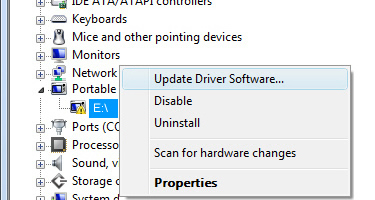

  1. Right-click the device then click Update Driver Software.
    Note If using Windows 2000 / XP, right-click the device then click Update Driver.
    Note The device name may vary from the example.
    Update drive

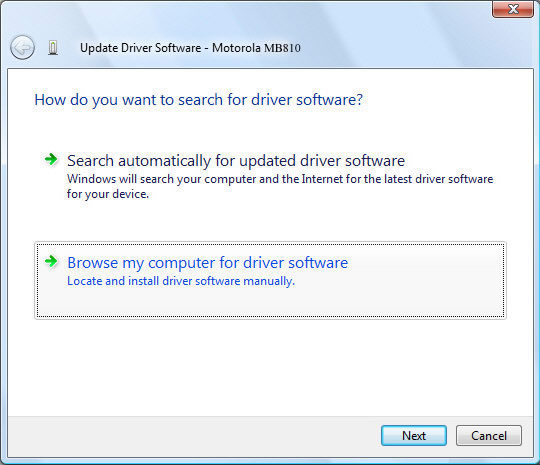

  2. Click Browse my computer for driver software.
    Note If using Windows 2000 / XP, select Install from a list or specific location (Advanced) then click Next.
    Driver Install location

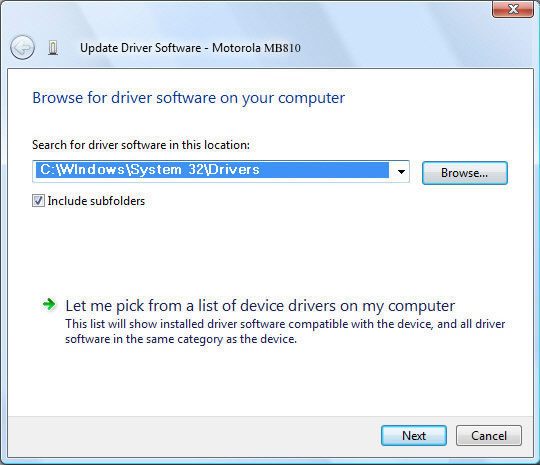

  3. Enter C:\Windows\System 32\Drivers in the search field then click Next.
    Note If using Windows 2000 / XP, ensure that Search for the best driver in these locations and Include this location in the search are selected.
    Note The driver location can be entered manually or navigated to by clicking Browse.
    Note If the driver software is not found, a Windows Operating System update may be needed.
    Enter driver location

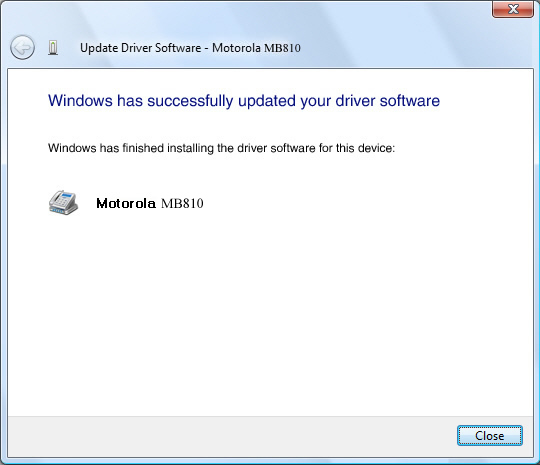

  4. Click Close.
    Note If using Windows 2000 / XP, click Finish.
    Driver update complete
