Phone Lock - DROID INCREDIBLE by HTC

Setting the unlock pattern
Unlocking the wireless device if a security pattern is set
Unlocking the wireless device if a security pattern is not set
Locking the wireless device







Setting the unlock pattern

  1. From the home screen, touch the applications tab (located in the lower-left).
    Applications tab
  2. Touch Settings.
    Settings

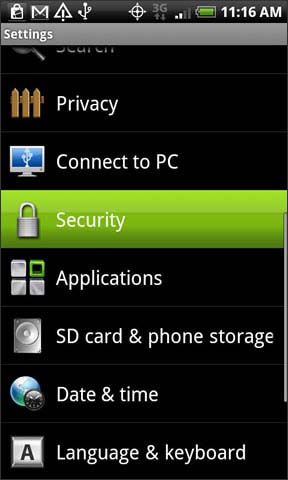

  3. Touch Security.
    Security

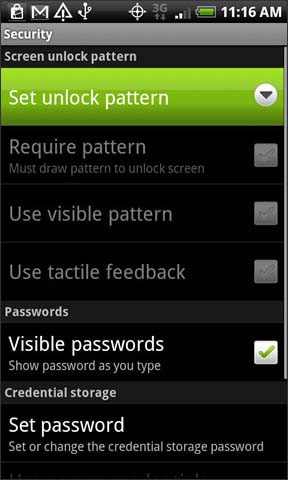

  4. Touch Set unlock pattern.
    Set unlock pattern

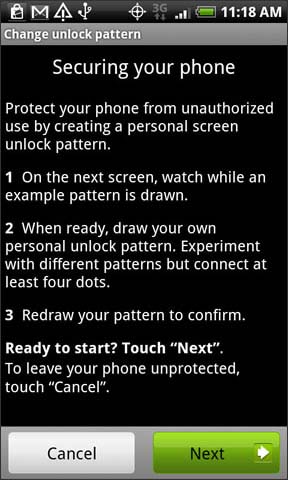

  5. If presented, touch Next.
    Next

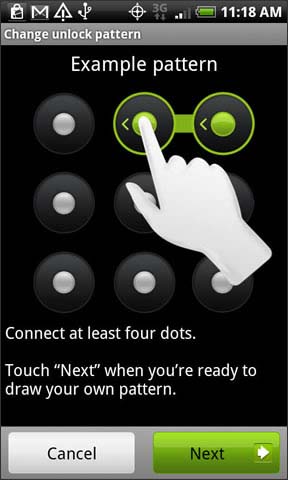

  6. If presented, touch Next.
    Next
  7. Touch and draw a pattern on the screen connecting at least four dots then touch Continue.
    Draw unlock pattern

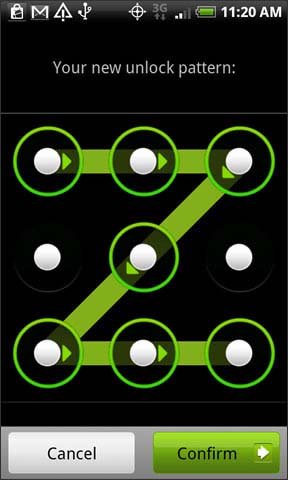

  8. Redraw the unlock pattern then touch Confirm.
    Redraw unlock pattern





Top





Unlocking the wireless device if a lock pattern is set

  1. If the display is dark press the Power key.
    Power key

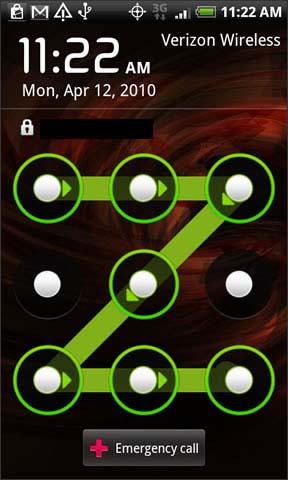

  2. Touch the unlock pattern on the screen.
    Draw unlock pattern

Note If the device unlock pattern is forgotten and the Gmail credentials are not available, a hard reset will need to be performed. Refer to Hard Reset - DROID INCREDIBLE by HTC for additional information.



Top





Unlocking the wireless device if a lock pattern is not set

  1. If the display is dark press the Power key.
    Power key

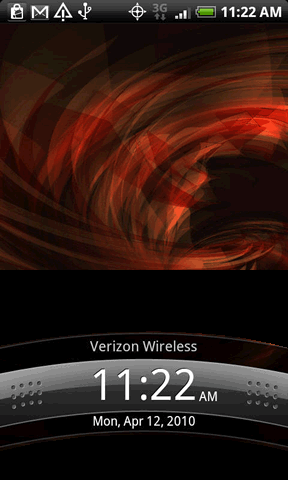

  2. Touch then drag the lock symbol to the bottom of the screen.
    drag lock symbol to bottom of screen





Top





Locking the wireless device

  1. Press the Power key.
    Power key



Top
