Connecting to a router or DSL / cable modem - Verizon 7501 Router

The following are required to install the Verizon Router:

• Active Internet service (confirm the Internet connection is active and functioning properly).
• Existing network device (such as a DSL modem, cable modem, or router) installed and functioning properly on the home network.
• A Network Interface Card (NIC) installed in each PC that will connect to the Router using Ethernet.
• An 802.11 b/g wireless adapter installed in each PC that will connect to the Router using Wi-Fi.

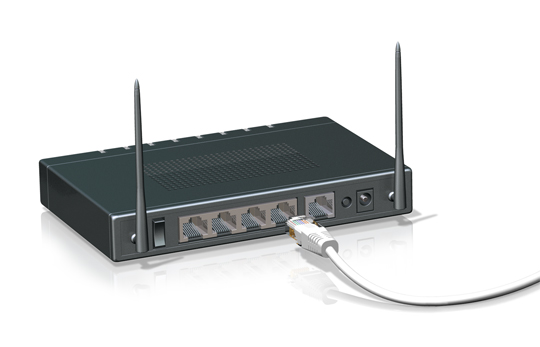

1. Plug one end of an Ethernet cable into the Ethernet jack on the network router or DSL / cable modem.
   Some modems may require enabling Bridge mode for authentication, please refer to the ISP for additional assistance.

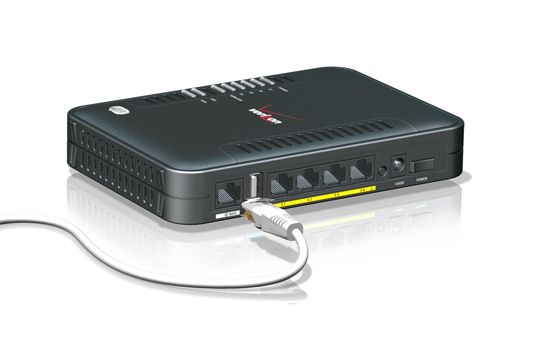

2. Plug the other end of the Ethernet cable into the jack labeled WAN on the back of the Verizon router.

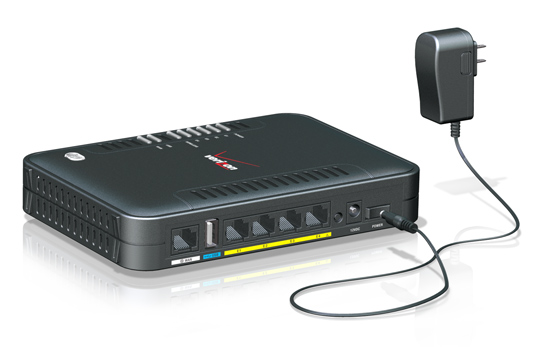

3. Plug the 12 VDC power adapter into the power connector on the back of the Verizon router.
   Use only the power adapter provided with the Verizon router.

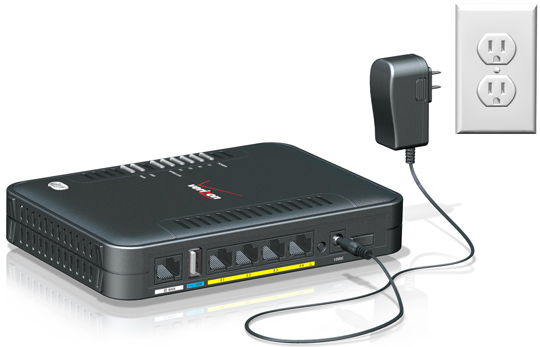

4. Plug the AC power cord into an outlet.

5. Ensure the network router or DSL / cable modem is powered on.

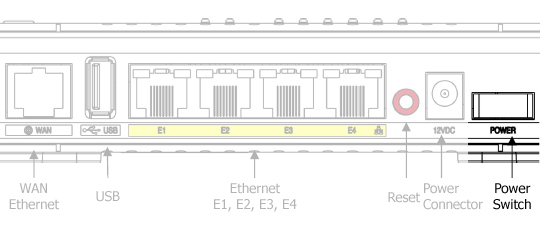

6. From the back of the Verizon Router, turn the power on.

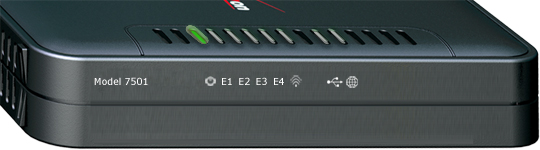

7. Ensure the Power LED is solid green.
